DESCRIPTION

The IGBT chopper module has the characteristics of controllable gate (voltage control, thyristor and GTO are current control gates), high switching frequency, and large transmission power. It can transform a continuous effective value unchanged DC into a square wave with adjustable pulse width but not adjustable amplitude. Although the amplitude is not adjustable, the average value (area) of the square wave varies at different pulse widths, In this way, we can transform a constant amplitude DC current into an average adjustable DC voltage regulating circuit. Since we want to transform continuous DC current into square waves one by one (this is called chopping),

Features:

Low switching and conduction losses
Low saturation pressure drop, positive temperature coefficient High power, low loss, high reliability
Adopt 3mm thick copper heat dissipation substrate to provide higher power density
Using low thermal resistance ceramic copper clad substrate Silver-plated signal terminals, easy to solder, low contact resistance
Wide operating temperature range, suitable for various harsh environment applications

Applications:

Inverter welding machine

Industrial Frequency Converter UPS power supply

Photovoltaic inverter
SVG reactive power compensation Electric car
Charging pile
Servo motor

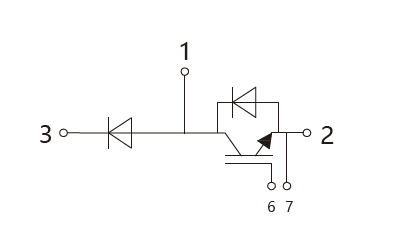

CIRCUIT

Type

VCES


(v)

Ic

@100℃
(A)

VCE(sat)

@25℃

(V)

VF

@25℃
(V)

封装
Package

DKG50CU60TE

650

50

1.75

1.85

G1

DKG75CU60TE

650

75

1.75

1.85

DKG100CU60TE

650

100

1.75

1.85

DKG150CU60TE

650

150

1.75

1.85

DKG50CU120TE

1200

50

2.3

2.1

DKG75CU120TE

1200

75

2.2

1.9

DKG100CU120TE

1200

100

2.2

1.9

DKG150CU120TE

1200

150

2.2

2.1

DKG50CU170TA

1700

50

2.3

1.95

DKG75CU170TA

1700

75

2.3

1.95

DKG100CU170TA

1700

100

2.3

2.1

DKG50CL60TE

650

50

1.75

1.85

G1

DKG75CL60TE

650

75

1.75

1.85

DKG100CL60TE

650

100

1.75

1.85

DKG150CL60TE

650

150

1.75

1.85

DKG50CL120TE

1200

50

2.3

2.1

DKG75CL120TE

1200

75

2.2

1.9

DKG100CL120TE

1200

100

2.2

1.9

DKG150CL120TE

1200

150

2.2

2.1

DKG50CL170TA

170o

50

2.3

1.95

DKG75CL170TA

1700

75

2.3

1.95

DKG100CL170TA

1700

100

2.3

2.1

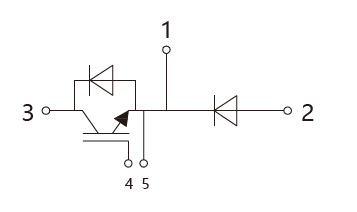

CIRCUIT

Type

VCES


(v)

Ic

@100℃
(A)

VCE(sat)

@25℃

(V)

VF

@25℃
(V)

Package

DKG150CU60TE

650

150

1.65

1.7

G2

DKG200CU60TE

650

200

1.65

1.7

DKG300CU60TE

650

300

1.65

1.7

DKG400CU60TE

650

400

1.65

1.7

DKG150CU120TE

1200

150

1.9

1.85

DKG200CU120TE

1200

200

1.9

1.85

DKG300CU120TE

1200

300

1.9

1.85

DKG400CU120TE

120o

400

1.9

1.85

DKG600CU120TE

120o

600

1.9

1.85

DKG150CU120TE

1700

150

2.1

1.95

DKG200CU120TE

1700

200

2.1

1.95

DKG300CU120TE

1700

300

2.1

1.95

DKG400CU120TE

1700

400

2.1

1.95

DKG600CU120TE

1700

800

2.1

1.95

DKG150CL60TE

650

150

1.65

1.7

G2

DKG200CL60TE

650

200

1.65

1.7

DKG300CL60TE

650

300

1.65

1.7

DKG400CL60TE

650

400

1.65

1.7

DKG150CL120TE

1200

150

1.9

1.85

DKG200CL120TE

1200

200

1.9

1.85

DKG300CL120TE

1200

300

1.9

1.85

DKG400CL120TE

1200

400

1.9

1.85

DKG600CL120TE

1200

600

1.9

1.85

DKG150CL170TA

1700

150

2.1

1.95

DKG200CL170TA

1700

200

2.1

1.95

DKG300CL170TA

1700

300

2.1

1.95

DKG400CL170TA

1700

400

2.1

1.95

DKG600CL170TA

170o

6oo

2.1

1.95
