Features

All diffused technics, bifacial cooling

Distributed amplifying triggers tructure

Low switching losses

Super high frequency performance, suitable for 2.5HZ~10HZ

Excellent dynamic performance

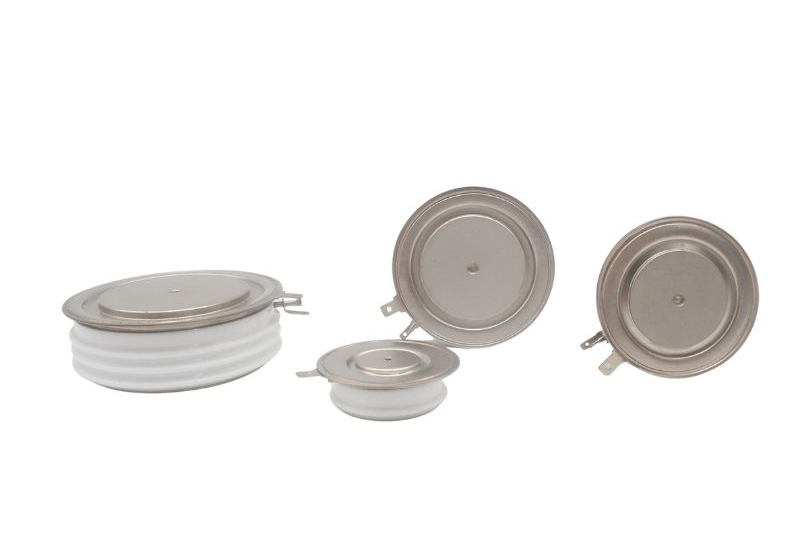

Disc type ceramic casing encapsulation

Applications

Inverter

(Electric) Welder

Chopper

Induction heating

Various compulsive converter

Model

VDRMVRRM

IT(AV)

tq

ITSM

dv/dt

di/dt

IDRMIRRM

IGT

VGT

IH

VTM/ITM

VTO

rT

Rth(j-hs)

Tjm

M2

Outline

55°C

100°C

10ms

25°C

115°C

V

A

μs

KA

V/μs

A/μs

mA

mA

V

mA

V/A

V

mΩ

°C/W

°C

KN

DKHT600A-B

600-1000

600

5-7

6

200

200

40

38-250

0.8-3.0

20-400

3.2/1200

1.40

0.48

0.035

115

10-20

C17

DKHT200A-C

800-1200

200

6-9

2.4

200

200

30

30-200

0.8-2.5

20-250

3.2/600

1.45

1.12

0.055

115

5.3-10

C8

DKHT600A-C

800-1200

600

6-9

4.8

200

200

40

30-250

0.8-3.0

20-400

3.2/1200

1.48

0.67

0.035

115

10-20

C17

DKHT800A-C

800-1200

800

6-10

9.6

200

250

60

30-250

0.8-3.0

20-400

3.2/2400

1.41

0.45

0.030

115

18-25

C19

DKHT1000A-C

800-1200

1000

6-10

12

200

250

80

30-300

0.8-3.0

20-400

3.2/3000

1.32

0.32

0.024

115

19-26

C20

DKHT1200A-C

800-1200

1200

8-15

14

200

250

100

30-300

0.8-3.0

20-400

3.2/3000

1.27

0.23

0.022

115

21-30

C21

DKHT200A-D

800-1400

200

8-12

2.4

200

200

30

30-200

0.8-2.5

20-250

3.2/600

1.67

1.32

0.055

115

5.3-10

C8

DKHT500A-D

800-1400

500

8-12

3.6

200

200

40

30-250

0.8-3.0

20-400

3.2/900

1.50

0.88

0.035

115

10-20

C17

DKHT600A-D

800-1400

600

10-14

7.2

200

250

60

30-250

0.8-3.0

20-400

3.2/1800

1.61

0.45

0.030

115

18-25

C19

DKHT800A-D

800-1400

800

10-14

9.6

200

250

80

30-250

0.8-3.0

20-400

3.2/2400

1.65

0.36

0.024

115

19-26

C20

DKHT1000A-D

800-1400

1000

10-15

12

200

250

100

30-300

0.8-3.0

20-400

3.2/3000

1.63

0.25

0.022

115

21-30

C21
