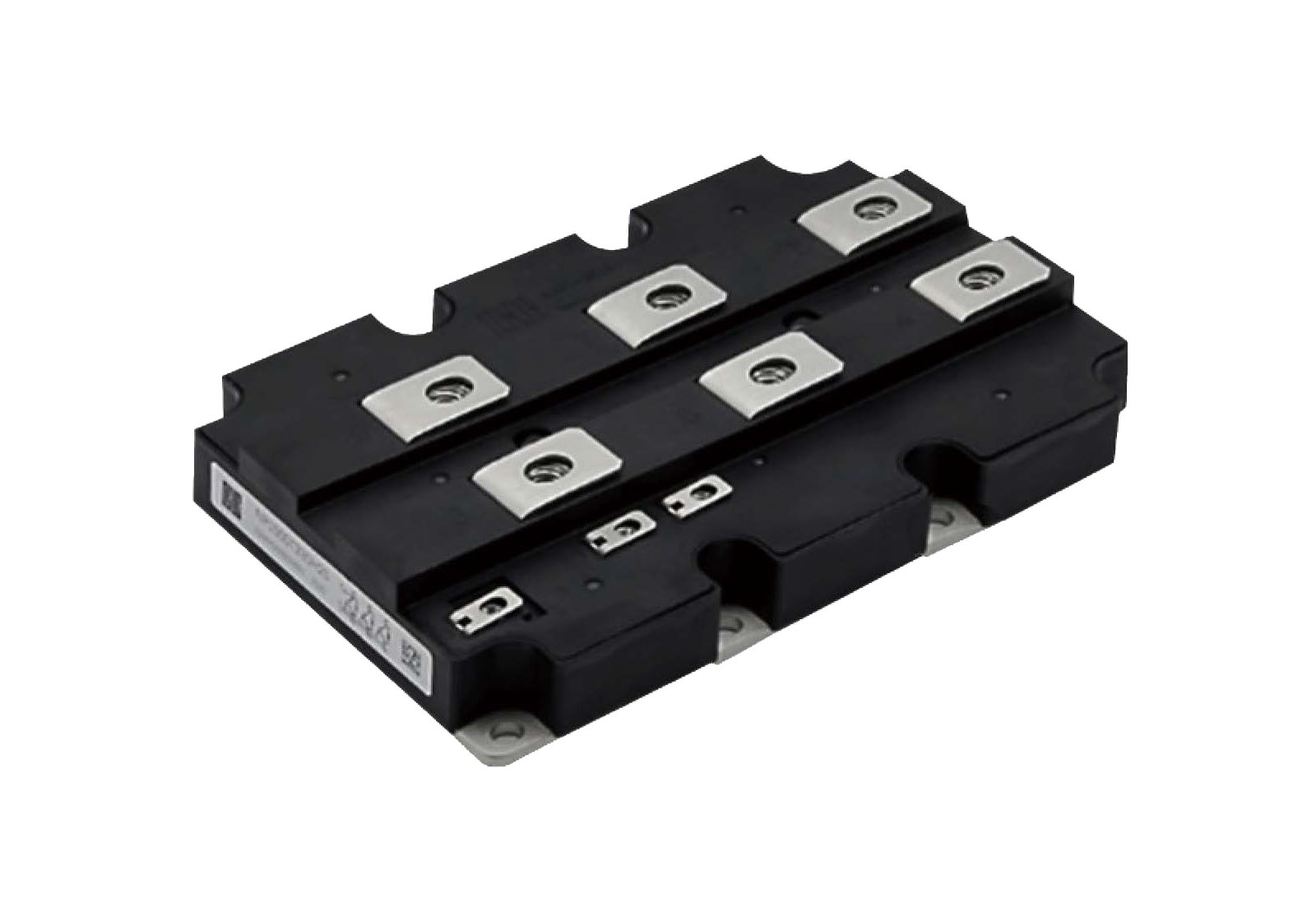

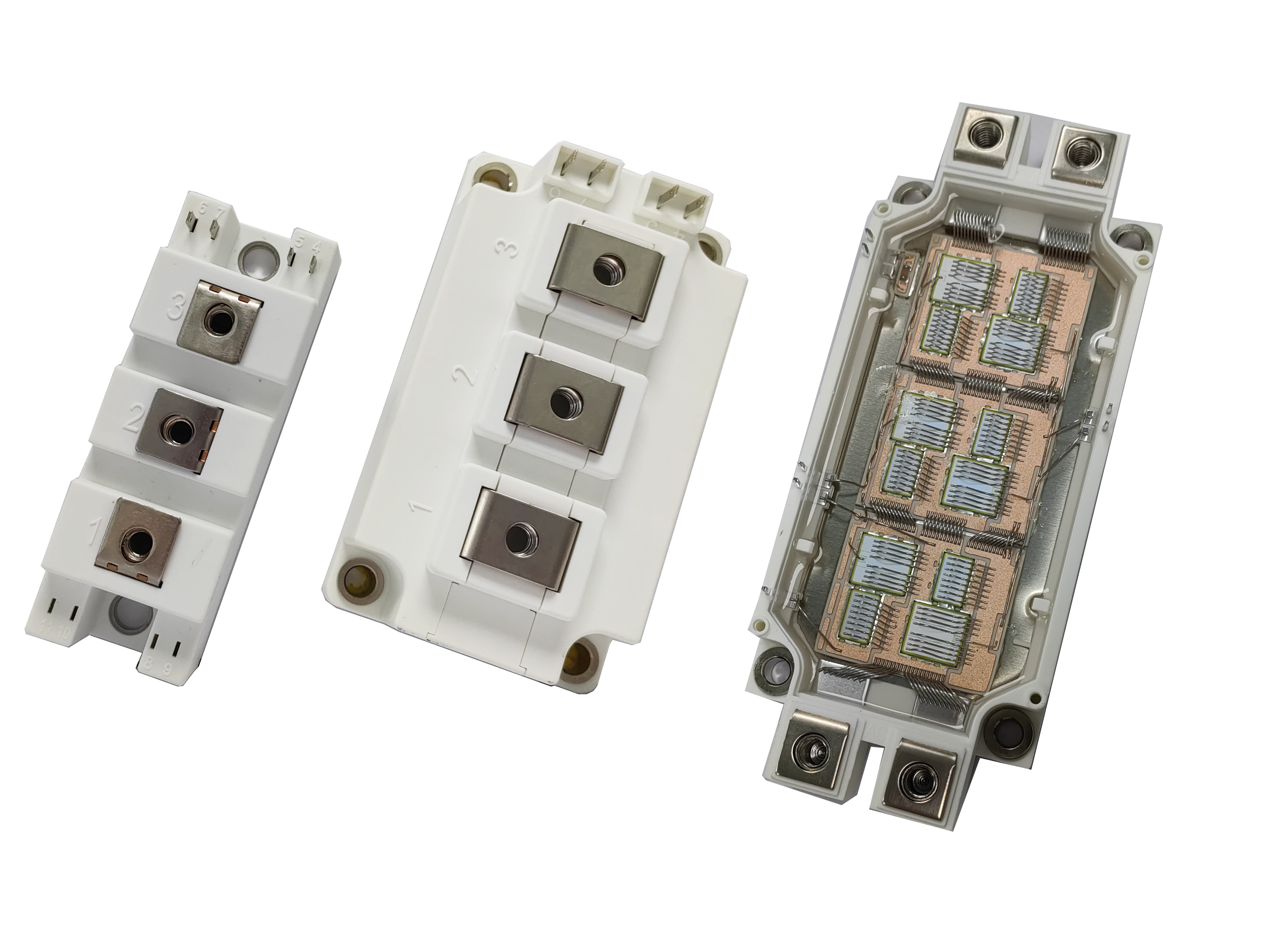

High Voltage IGBT Module
High Voltage IGBT Module

High Voltage IGBT Module

Any Questions?
+86-13720244449

Send Email
sales@semiduken.com

DESCRIPTION

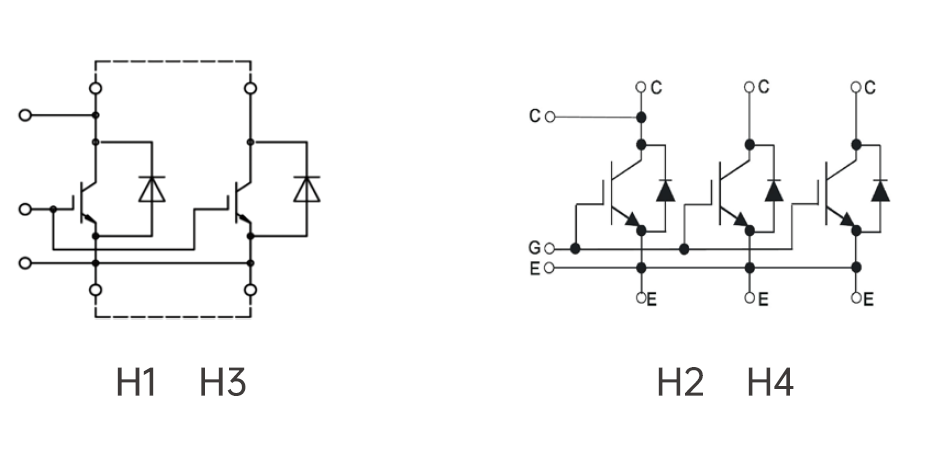

FeaturesCircuit

Low Switching Loss

Low Rth AIN DBC

High Reliablilty

AISIC Baseplate

Positive Temperature Coefficient


Application

Part No.VCESlc@Tc=100°C, Tvj=TvjmaxVce(sat)VfTvjop maxPackage
DK1200S45H4K14500V1200A2.72.6125℃H4
DK800S45H3K14500V800A2.72.6125℃H3
DK1500S33H2K13300V1500A2.452.1150℃H2
DK1000S33H1K13300V1000A2.452.1150℃H1
DK3600S17H2K11700V3600A2.691.75150℃H2

Have a question? Get a Free Consultation

We’re here to listen.

Power Solution supplier

Our Main Products include: Rectifier Diodes & Thyristor & relevant rectifying devices; Power module, Bridge rectifier, Press-fit Diode, Solid state relay, Intelligent module, Heatsink, Welding machine device, Rectifier equipments, Switch power supply etc

RECOMMENDED PRODUCT

Half-Bridge IGBT Modules

Half-Bridge IGBT Modules

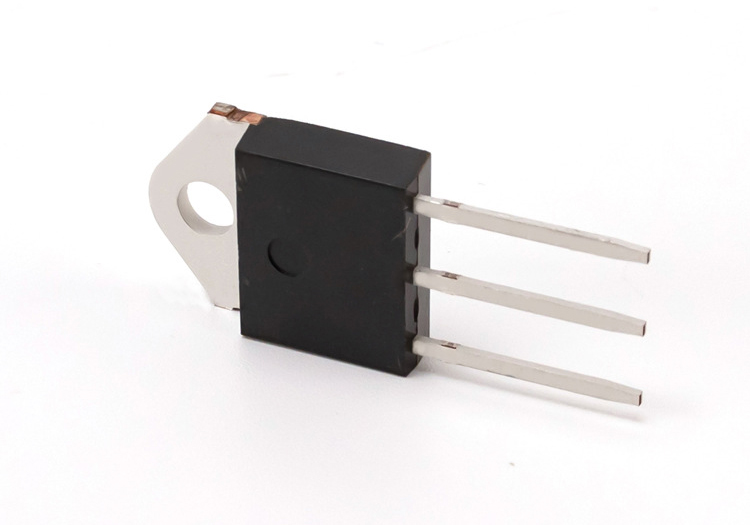

SiC DISCRETES

SiC DISCRETES

High Voltage IGBT Module

High Voltage IGBT Module

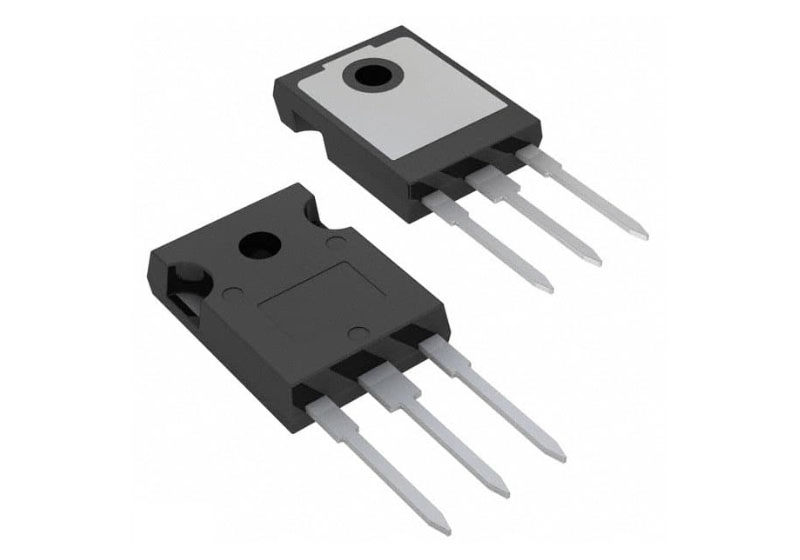

Igbt  Transistor

Igbt Transistor

1700V IGBT Modules

1700V IGBT Modules

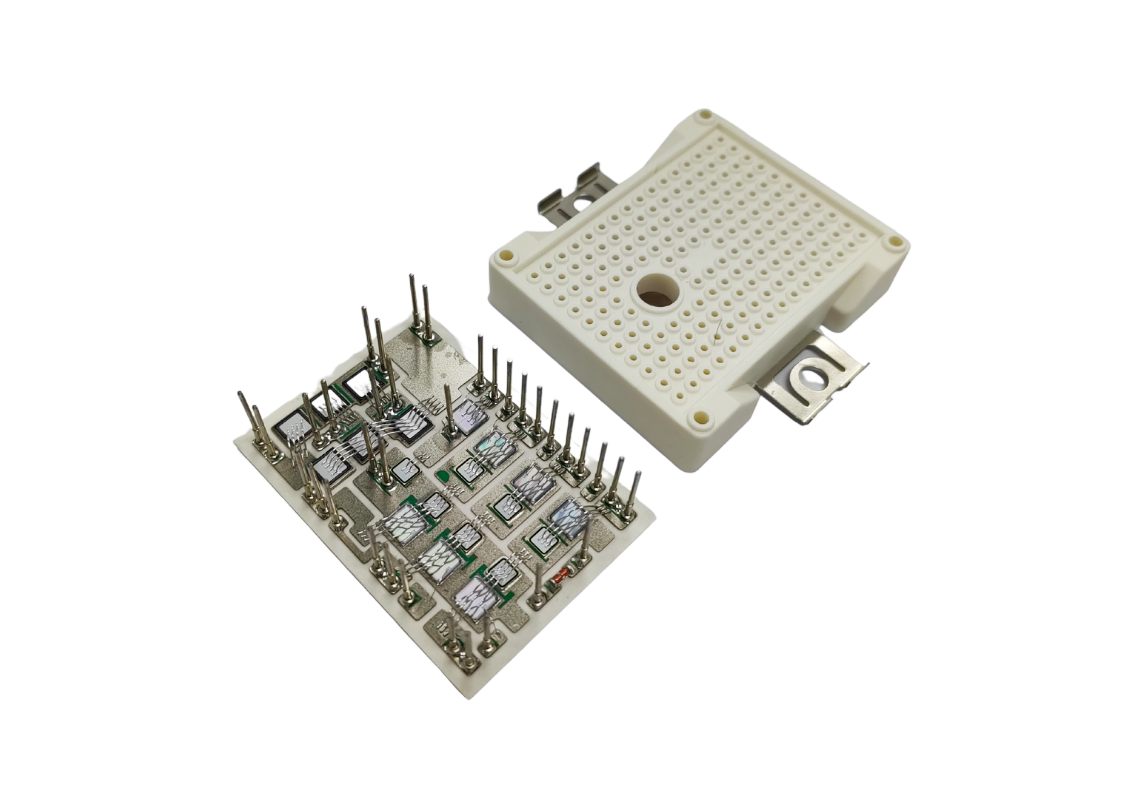

PIM  Modules

PIM Modules

IGBT Chopper Modules

IGBT Chopper Modules

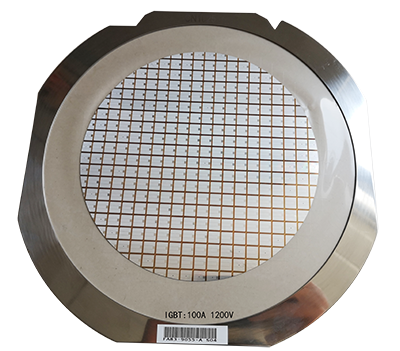

IGBT Chips
