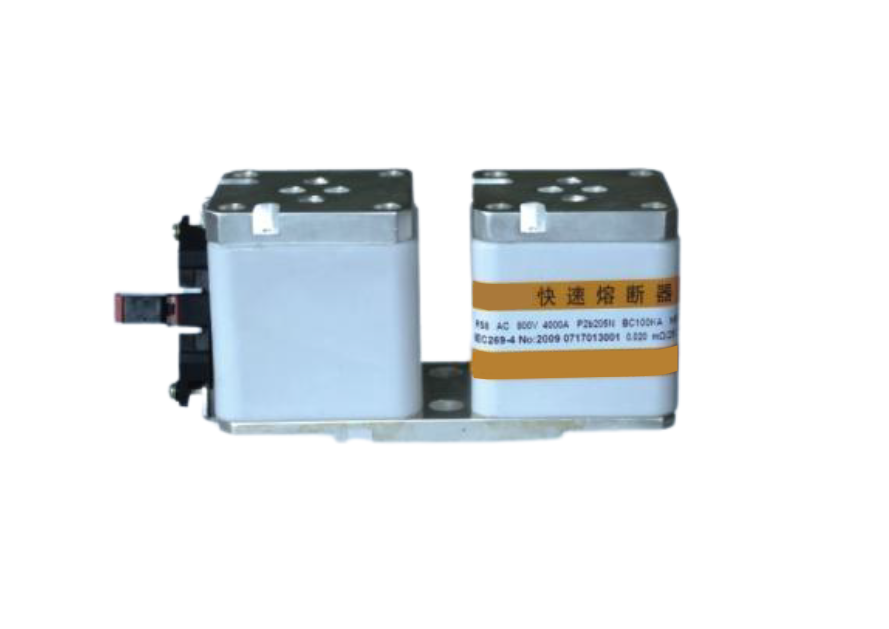

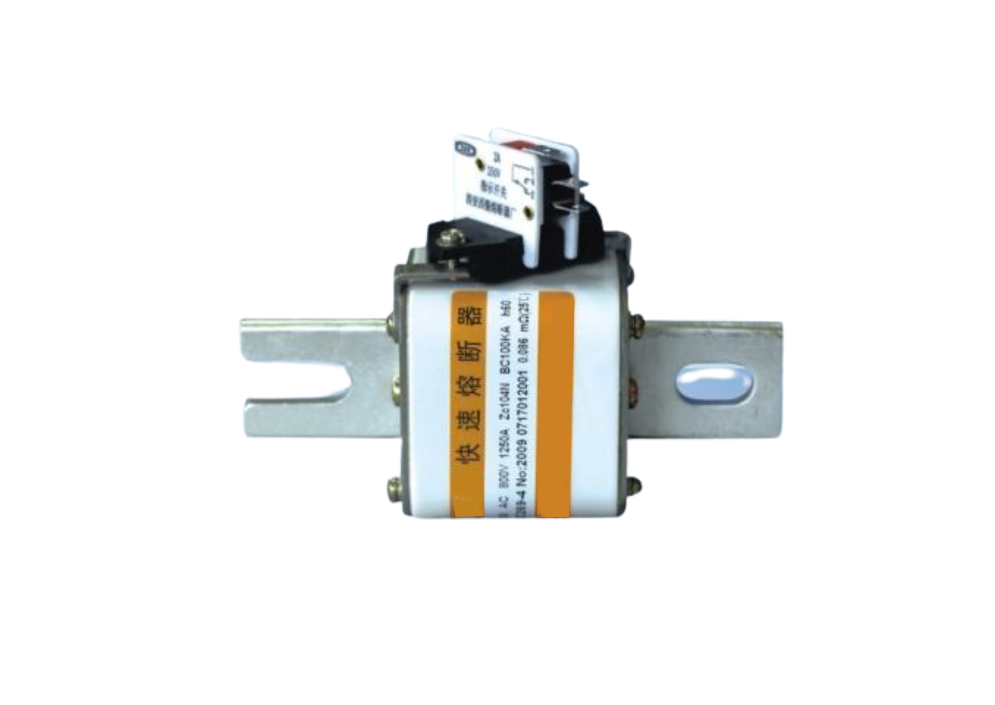

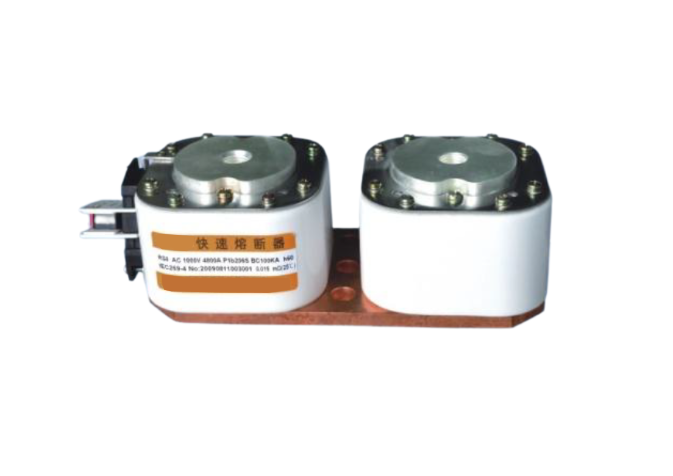

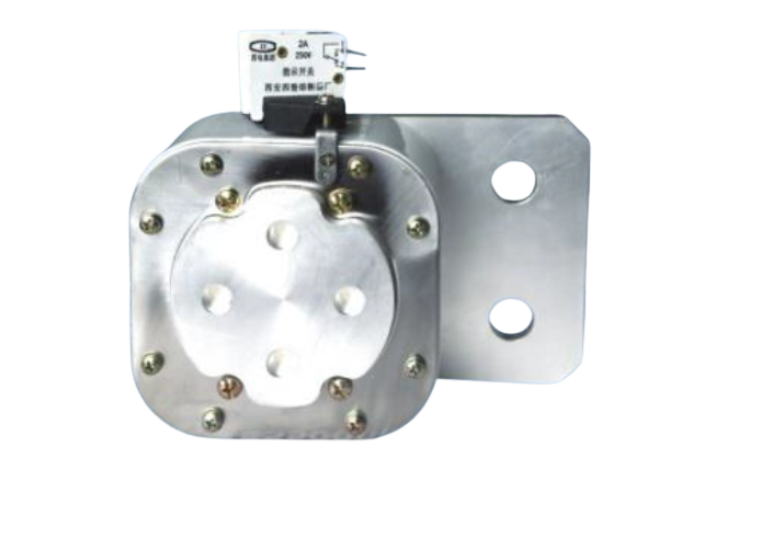

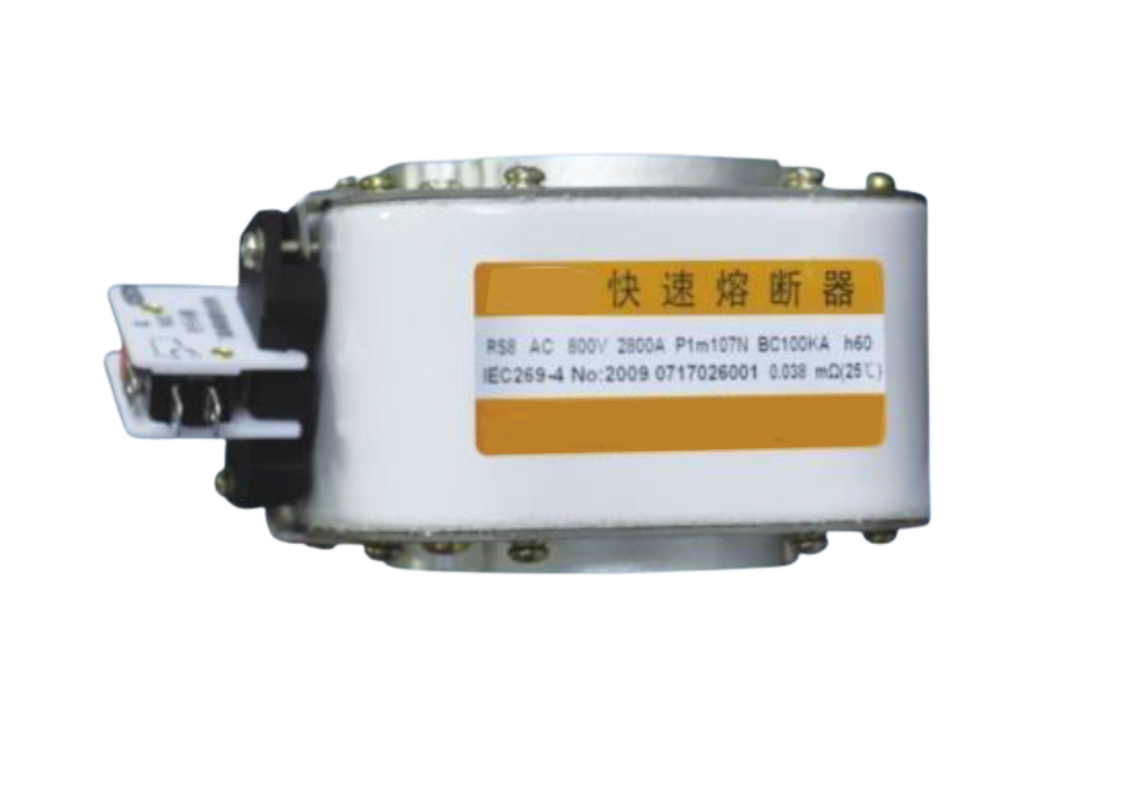

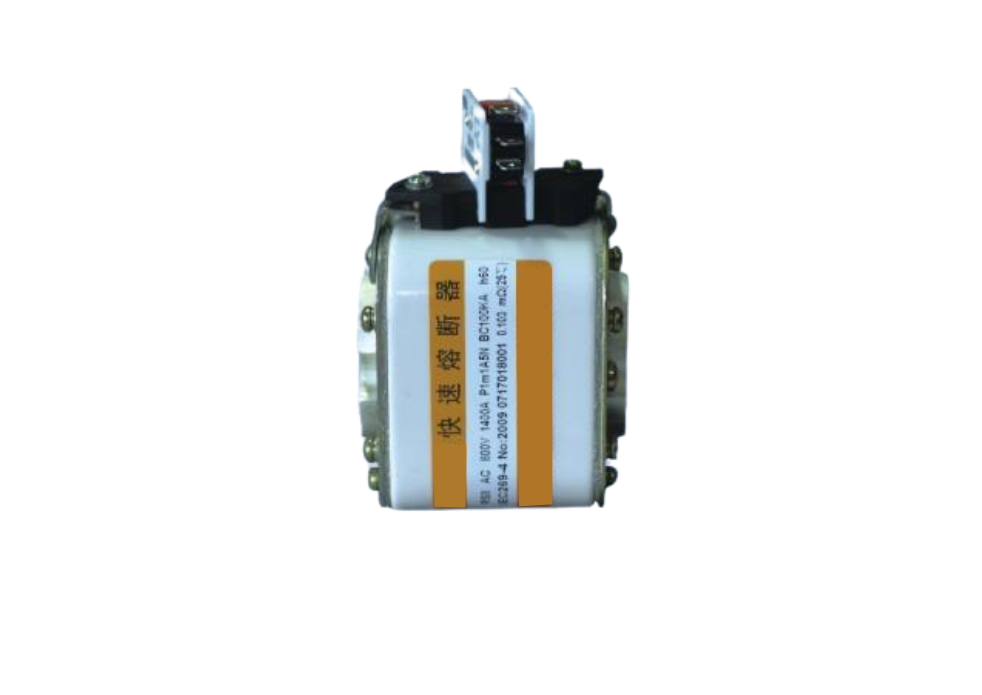

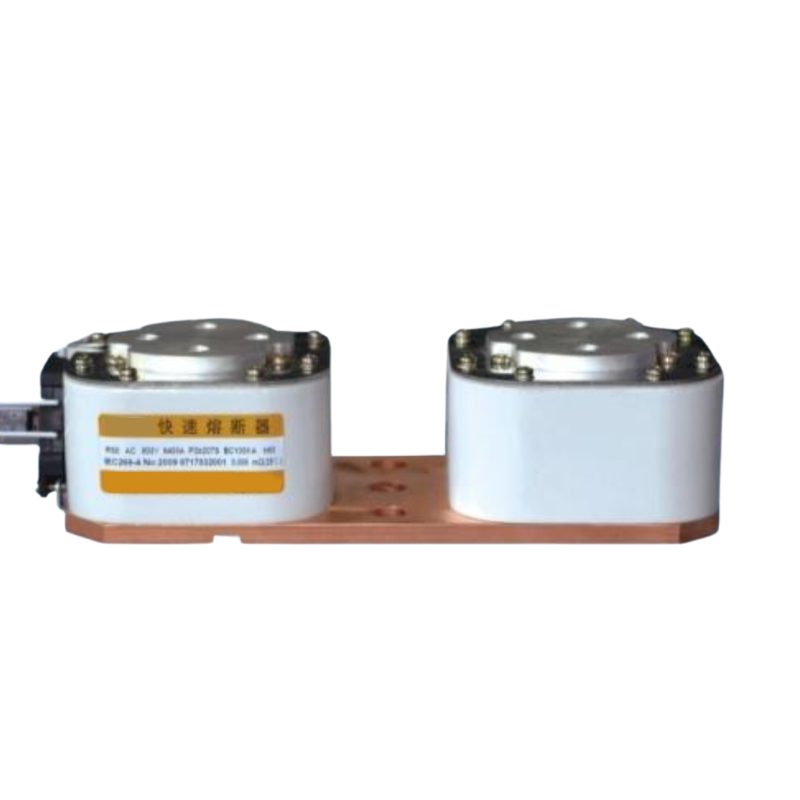

Semiconductor Equipment Protection Fuse 8

Any Questions?
+86-13720244449

Send Email
sales@semiduken.com

DESCRIPTION

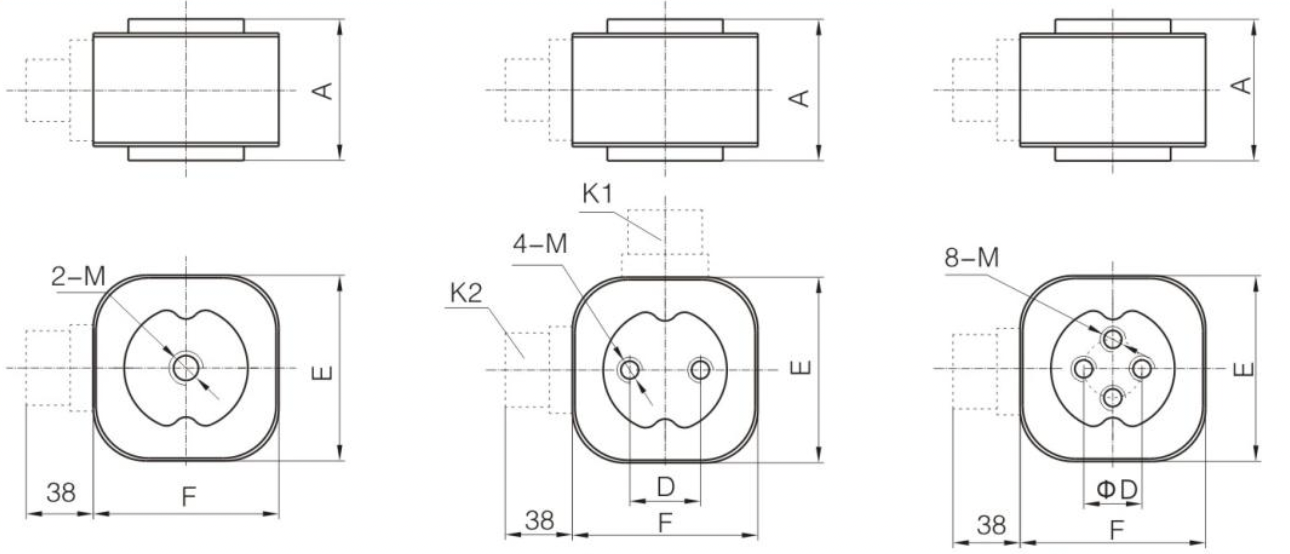

P8.1	P8.2	P8.3

No.	Part number	Voltage (V)	Rated current (A)	Structure	Size(mm)									Outline No.
					A	B	C	D	E	F	H	M	Φ
1	RS8-500/口-P1m106N	500	1400,1500,1800, 2000,2200,(2400)	P1m	60				105	105		M16x15		P8.1
	RS8-800/口-P1m106N	800			80
	RS8-1000/口-P1m106N	1000	1400,1800,2000		9
	RS8-1500/口-P1m106N	1500	1200,1600,1800		110
2	RS8-500/口-P2m106N	500	1400,1800,2000 2200,(2400)	P2m	60			40	105	105		M12 ×12		P8.2
	RS8-800/口-P2m106N	800			80
	RS8-1000/口-P2m106N	1000	1400,1800,2000		90
	RS8-1500/口-P2m106N	1500	1200,1600,1800		110
3	RS8-500/口-P4m106N	500	1400,1800,2000, 2200,(2400)	P4m	60			33	105	105		M10 x12		P8.3
	RS8-800/口-P4m106N	800			80
	RS8-1000/口-P4m106N	1000	1400,1800,2000		90
	RS8-1500/口-P4m106N	1500	1200,1600,1800		110
4	RS8-500/口-P1m106S	500	1800,2000,2400 2800,(3000)	P1m	60				105	105		M16 ×15		P8.1
	RS8-800/口-P1m106S	800			80
	RS8-1000/口-P1m106S	1000	1600,2000,2500		90
	RS8-1500/口-P1m106S	1500	1250,1600,2000		110
5	RS8-500/口-P2m106S	500	1800,2000,2400, 2800,(3000)	P2m	60			40	105	105		M12 ×12		P8.2
	RS8-800/口-P2m106S	800			80
	RS8-1000/口-P2m106S	1000	1600,2000,2500		90
	RS8-1500/口-P2m106S	1500	1250,1600,2000		110
6	RS8-500/口-P4m106	500	1800,2000,2400, 2800,(3000)	P4m	60			33	105	105		M10×12		P8.3
	RS8-800/口-P4m106S	800			80
	RS8-1000/口-P4m106S	1000	1600,2000,2500		90
	RS8-1500/口-P4m106S	1500	1250,1600,2000		110
