Introduction

In the world of industrial power electronics, 400A phase control thyristors are renowned for their ability to regulate heavy electrical loads with both precision and reliability. These devices are optimized for use in demanding environments where system stability, surge handling, and control flexibility are critical.

Mechanical Design for Industrial Demands

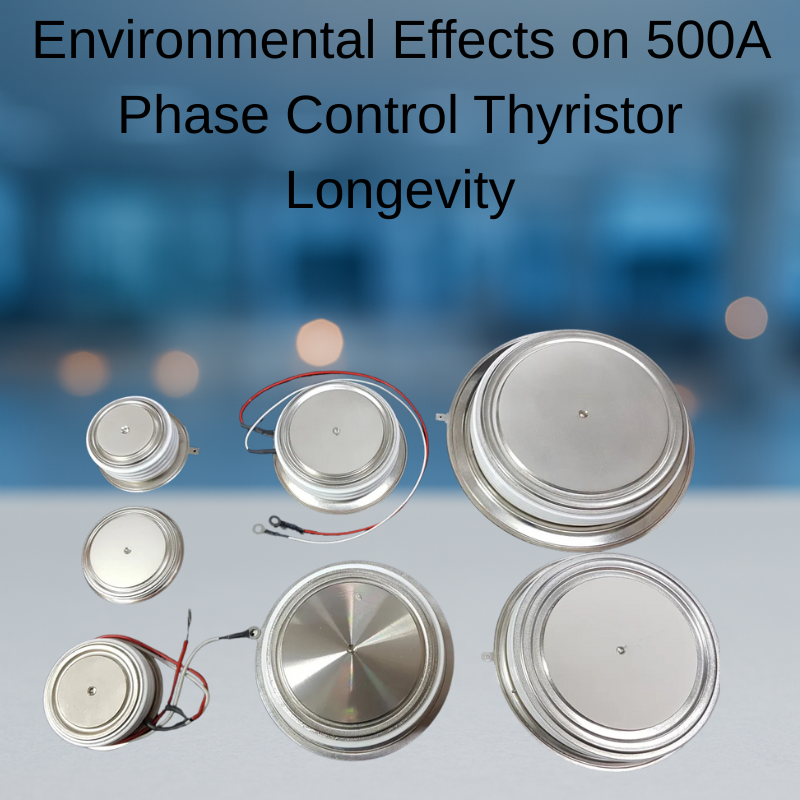

The core of the thyristor’s durability lies in its robust Aluminium housing, which provides structural strength while enabling efficient heat dissipation. Additionally, the disc package format ensures firm mechanical contact, making it easier to mount and integrate into various cooling systems.

This combination of features supports continuous operation under high temperature and mechanical stress. The inclusion of high dv/dt immunity protects the thyristor from erratic triggering when exposed to sharp voltage transitions—a must-have in noisy industrial electrical networks.

Core Technical Characteristics

Understanding a thyristor begins with its datasheet. The KP400A‑6500V is one of the most widely used variants, known for its balance of high current capacity and voltage rating. The datasheet reveals key characteristics such as critical rate of rise of off-state voltage, gate sensitivity, and average forward current.

Accurate gate trigger control is another essential feature, allowing phase modulation for precise energy delivery. This is particularly useful in applications like variable-speed drives and heating controls, where power needs to be regulated smoothly.

The high dv/dt immunity is consistently emphasized in design documents, showing how well the device performs even in highly dynamic circuit conditions.

High Surge Handling and Thermal Management

One of the defining attributes of these thyristors is their high surge current rating, which allows them to absorb short-duration overloads without compromising performance. In real-world operations, surges are inevitable due to startup inrush or unpredictable grid behavior.

Thanks to their Aluminium housing, these devices dissipate heat effectively, avoiding thermal breakdown during stress. The disc package enhances this by maintaining optimal thermal contact, preventing hot spots that can damage semiconductors over time.

Engineers value this combination of thermal reliability and surge tolerance when designing for mission-critical environments.

Applications in Modern Infrastructure

The 400A phase control thyristor finds application in a wide range of systems—such as induction heating, electroplating, and motor control. Whether it’s deployed in a KP400A‑6500V configuration or another model, designers depend on the datasheet to fine-tune performance and ensure compatibility.

The gate trigger control mechanism enhances usability in both analog and digital trigger systems, while high dv/dt immunity ensures long-term stability under repetitive switching conditions.

Additionally, systems vulnerable to power spikes rely on the thyristor's high surge current rating to continue operations safely and avoid shutdowns.
