DESCRIPTION

Product Overview
SEMIDUKEN DK20S60NXD is a 600V 20A three phase full bridge intelligent power module designed for inverter motor drive applications. It integrates 6 low loss trench gate field stop IGBTs, a high voltage gate driver circuit, built in bootstrap diode, and multiple protection functions in a compact DIP25 package. This IPM is well suited for home appliance inverter systems that require stable switching performance, compact design, and reliable protection. It is widely used in air conditioners, refrigerators, washing machines, low power inverters, and other brushless DC motor control systems.

Key Features
600V 20A three phase inverter module
Built in low loss trench gate field stop IGBT
Built in bootstrap diode for simplified circuit design
Under voltage protection short circuit protection and over temperature protection
Fault output and temperature output for safer system design
Compatible with 3 point 3V and 5V logic input signals

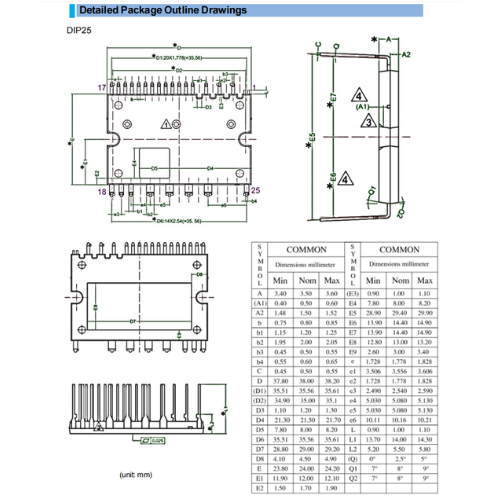

Compact DIP25 package for appliance inverter boards
Supports PWM switching frequency up to 20kHz

 Typical Applications
Air conditioner compressor inverter
Refrigerator compressor drive
Washing machine motor inverter
Low power inverter systems
Industrial sewing machine motor control
Three phase brushless DC motor drive solutions
