In high-power semiconductor selection, electrical ratings often receive the most attention. Engineers naturally focus on voltage, current, leakage, surge rating, and gate trigger values. However, the physical package of a thyristor is just as important as its electrical data. For a 1400A phase control thyristor, package design determines how effectively heat is removed, how reliably current flows through the contact surfaces, and how well the device survives mechanical stress in long-term operation.

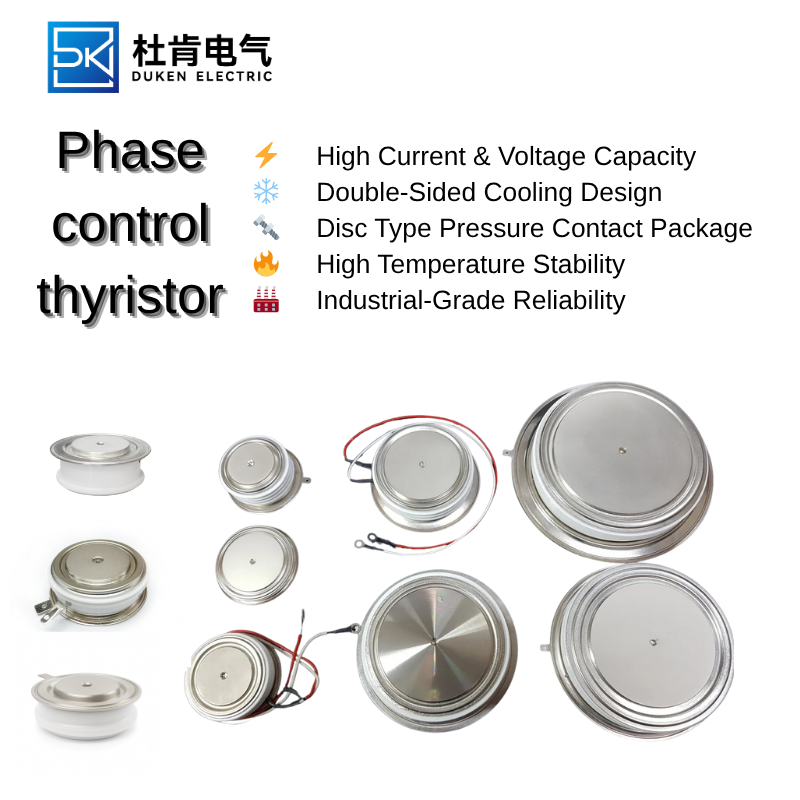

A disc package is widely used in high-current industrial applications because it offers strong pressure contact and efficient heat transfer from both sides of the silicon structure. When combined with an Aluminium housing, the package can provide durability, practical stack integration, and reliable performance under heavy-duty conditions. This is why a high surge current rating Aluminium housing disc package 1400A phase control thyristor is often considered for demanding rectifiers, power controllers, drives, and soft-start systems.

1. The package is part of the thermal design

At 1400A, even small conduction losses generate significant heat. The package must transfer heat from the silicon junction to the external heatsink quickly and evenly. If the thermal path is poor, the junction temperature rises, causing reduced reliability, increased leakage current, and possible thermal runaway.

Disc package thyristors are designed for pressure mounting between heatsinks. This arrangement can support double-sided cooling, which reduces thermal resistance compared with single-sided mounting. However, the benefit is only achieved when the device is installed correctly. Flat contact surfaces, proper alignment, correct clamping force, and clean interfaces are essential.

When reviewing a datasheet KP1400A‑6500V low leakage current 1400A phase control thyristor, engineers should study thermal resistance, maximum junction temperature, case temperature limits, and recommended mounting force. These values indicate whether the package can support the required current under the available cooling conditions.

2. Aluminium housing supports mechanical strength and integration

Industrial power stacks are exposed to vibration, thermal expansion, service handling, and repeated heating cycles. A strong housing helps protect the semiconductor structure and supports consistent installation. Aluminium is often valued because it offers a useful combination of mechanical strength, thermal behavior, and manageable weight.

A high surge current rating Aluminium housing disc package 1400A phase control thyristor can be easier to integrate into heavy-duty assemblies where robust construction is required. The package must maintain stable pressure contact over time, even as the stack expands and contracts with temperature changes.

Mechanical design should never be treated as a secondary issue. If the package is mounted unevenly, the contact surface may develop hot spots. Hot spots increase local stress and may cause early failure. Correct hardware, calibrated tightening tools, and manufacturer-recommended pressure values are necessary for safe installation.

3. Package choice affects surge performance

Surge current events produce intense thermal and mechanical stress over a very short time. During a fault or inrush event, the thyristor must conduct a large current pulse without damage. The internal silicon, metallization, contact interface, and package structure must all withstand that stress.

A high surge current rating Aluminium housing disc package 1400A phase control thyristor is designed to provide strong transient current handling, but the rating must be interpreted carefully. Surge current is usually specified under defined conditions, such as a half-cycle sine wave and a starting junction temperature. If the actual event lasts longer or repeats often, the stress may exceed the safe limit.

Protection coordination remains critical. Semiconductor fuses, current limiting reactors, control shutdown logic, and fault detection systems should be selected to keep the thyristor within its surge capability. The package helps, but it does not replace proper protection.

4. Leakage current and temperature are connected

Leakage current is often discussed as an electrical parameter, but it is strongly connected to thermal behavior. As temperature increases, off-state leakage generally increases. Higher leakage adds heat, and added heat may increase leakage further. In high-voltage systems, this relationship becomes especially important.

The datasheet KP1400A‑6500V low leakage current 1400A phase control thyristor should therefore be evaluated together with package thermal performance. A low leakage current rating is valuable, but it must be maintained under real operating temperature. If the cooling system is inadequate, leakage performance at high temperature may become a reliability concern.

Low leakage behavior can also support series operation. In high-voltage stacks, devices must share voltage evenly. Stable leakage characteristics help reduce imbalance and make voltage sharing networks more predictable. This contributes to safer off-state blocking and lower long-term stress.

5. Installation quality determines real-world reliability

A strong package does not guarantee good performance if installation is poor. Before mounting a disc thyristor, technicians should inspect contact surfaces for scratches, oxidation, dust, and unevenness. The device should be centered between heatsinks, and the clamping system should apply uniform force.

Thermal interface materials must be used according to the design requirements. Excessive compound can increase thermal resistance, while insufficient compound may leave air gaps. For water-cooled stacks, water quality, flow rate, and cooling channel cleanliness should be maintained to prevent overheating.

Gate leads should be routed away from high-noise conductors and secured against vibration. Electrical connections should be tightened correctly, and polarity markings should be verified. Maintenance teams should periodically check stack pressure, cooling efficiency, and signs of overheating.

6. Selecting the best package for the application

The right package depends on the application environment. For compact, high-current, continuously operating equipment, disc packages with strong cooling paths are often preferred. For lower-power or modular designs, other packages may be acceptable. In heavy industry, however, the mechanical and thermal advantages of disc construction are difficult to ignore.

When comparing devices, do not evaluate the datasheet KP1400A‑6500V low leakage current 1400A phase control thyristor only by voltage and current. Confirm package dimensions, mounting force, cooling requirements, surge rating, leakage behavior, and compatibility with the existing stack. A well-matched package improves electrical performance because it keeps the device cooler, more stable, and better protected from mechanical stress.

For demanding systems, a high surge current rating Aluminium housing disc package 1400A phase control thyristor offers a practical combination of current capability, transient robustness, and installation strength. Choosing the correct package helps transform datasheet ratings into dependable field performance.
